สเปค

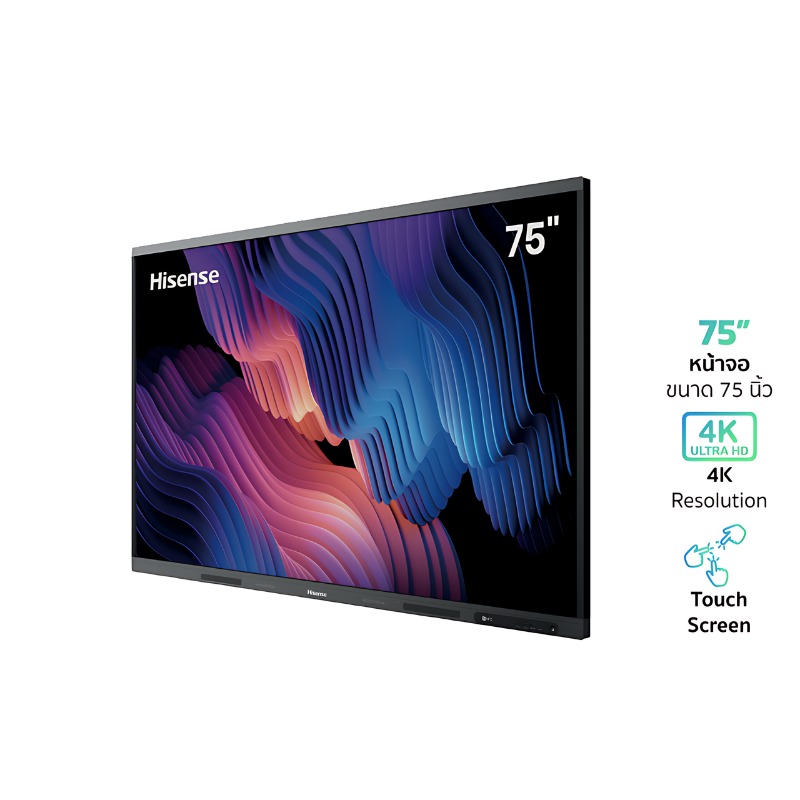

Interactive Display panel

• Size: 75’’
• Backlight: D-LED
• Resolution: 3840 x 2160
• Brightness: 350cd/m²(typ.)
• Contrast ratio: 1200:1(typ.)
• Response Time: 8ms
• Refreshing Frequency: 60Hz
• Viewing angle: 178°(H) / 178°(V)
• Lifetime: 50,000hrs
• Color Gamut: 72%
• Display Colours: 1.07B(10bit)

System

• OS: Android 13.0
• Language: Chinese, English, Polish, German,French, Italian, Spanish, Finnish, Norwegian, Swedish, Thai, Indonesian, Japanese

Speaker

• Built in speaker: 2x15W+20W

Connectivity

• WI-FI: IEEE 802.11a/b/g/n/ac/ax(2.4G and 5G), IEEE 802.11a/b/g/n/ac(2.4G and 5G)
• Bluetooth: BT5.1
• NFC: Yes
• Input: HDMI(2.0) IN x3, OPS (Optional) x1, LAN x1 (1000baseT R), USB3.0 x3, Type-C x1 (Support PD 65W), Touch x1, Audio In x1, RS-232 In x1(RJ45)
• Output: RS232 OUT x1 (RJ45), HDMI Out x1, S/PDIF Out x1, Audio Out x1

Power

• Power Requirements: AC 100 V ~ 240 V, 50/60 Hz
• Power Consumption Without OPS: 350W (Max)
• Standby Consumption: <0.5W

Touch

• Sensing Type: Infrared Touch Frame
• Surface Protection: Anti-Glare Glass
• Infrared Touch: ≤20 points
• Touch Accuracy: 90%(±1mm)
• Theory Clicks: Unlimited
• Minimum Touch Object: ≥2mm
• Windows 10/8/7,Android: Multi Touch

Physical

• Housing Color: Black & Tarnish
• Product Size (W x H x D): 1710 x 126 x 1025.5mm / 67.3 x 5 x 40.4 inch
• Package Size (W x H x D): 1850 × 1165 x 240mm / 72.8 x 45.9 x 9.4 inch
• Net Weight: 45.3kg / 99.89lbs
• Packed Weight: 59.5kg / 131.2lbs
• VESA: 600x400mm, 4-M8 screw

Optional

• Basic: Mobile cart, OPS

อุปกรณ์ภายในกล่อง

• User manual
• Pen x 2
• Remote control
• Wireless Cast x 1 (optional)
• Power Cable
• Battery x 2
• Wall Mount Bracket x 1
